Our Fast 40+ in 3D

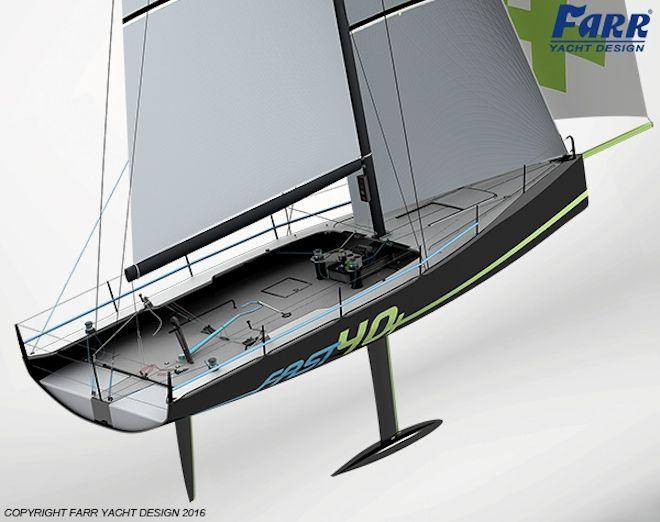

by Farr Yacht Design on 1 Jul 2016 Tour our new Fast 40+ in 3D. Explore some of the unique, features we’ve packed into this design. Available to view on all of your devices, including Google Cardboard.

Farr Yacht Design has created a FAST 40+ design that will lead the fleet in 2017 and define the direction of the class going forwards. Starting from a blank slate, our design 801 is a FAST 40+ created with advanced tools, to create an innovative design that is optimised for the UK class circuit. Each component and parameter of the design is balanced within the rest of the total design package to produce the best overall performance in the expected racing conditions and format. This design is optimized to the newly finalized 2017 FAST 40+ class rule and Solent conditions. The refined, high stability/low drag hull shape is integrated with advanced deck and structural design.

Design 801 has been created to take a huge step forward in the design and refinement in the FAST 40+ world. This class has generated great interest due to the compelling performance of the boats and the racing format. However, the design of the new hulls in the fleet dates back before the class was formalized. Farr Yacht Design has approached the creation of a FAST 40+ with a fresh look at every element of the boat, leaving no stone unturned. Design 801 combines cutting-edge research with countless innovations and refinement in all portions of the boat.

The hull form we have developed for this design has been crafted from the ground up to reflect the specific requirements of the FAST 40+ rule and the conditions anticipated for a Solent-focused event schedule. The shape itself is the product of an extensive computational fluid dynamic based optimisation study using our state-of-the-art Integrated Design-space Exploration and Optimisation System (IDEOS) that automates a suite of in-house simulation and performance prediction resources. The IDEOS system allows us to complete an automated exploration of the design space through the evaluation of hundreds of design variants.

Our studies of crew position have been central to the deck development. The deck edge carries its beam very far forward to maintain the highest possible crew hiking moment while also allowing the crew weight to maintain ideal fore/aft trim when sailing upwind. The open cockpit, centralized pit work station and deck geometry maximize efficient handling with minimized weight, windage and pitch gyradius. It takes an aggressive approach to maximize the benefit of moving crew weight both longitudinally and transversely.

A large focus of our appendage development for this class is maintaining the ability to hold lanes off the start and achieve an exceptional high mode to maximize tactical benefits. This will be particularly important in the larger and tighter fleets expected in 2017 and meets a general emphasis on upwind performance. To achieve these goals we have designed a unique foil section using our advanced proprietary inverse foil design methods.

Contact us at info@farrdesign.com to start a discussion on how we can work with your team and to learn more about this design.
