SF Marina update: Boston-area marina adds breakwater protection

Boston-area marina adds breakwater protection © SF Marina

Part of greater Massachusetts Bay, Quincy Bay is just seven miles south of Boston and home to Safe Harbor Marina Bay.

The full-service American marina offers a unique, vibrant waterfront, access to world-class boating and, with its new state-of-the-art SF Marina floating concrete breakwater system, safe and peaceful dockage.

Marina Bay's west basin had a long history of recurring damage from the local storm conditions. The SF Marina floating concrete breakwater array installed is engineered to overcome extreme weather events. It not only protects Marina Bay's floating timber docks and fingers from the area's numerous seasonal storms, but also reduces costly repairs.

Steel-reinforced and virtually unsinkable, each of the 14 Type-400 SF Marina pontoons used in the project has a buoyancy rating of approximately 500kg/m2, yet with their exceptional mass, the structures are exceptionally stable. An exclusive coupling system absorbs and distributes stress loads. They are anchored on 76cm steel piles.

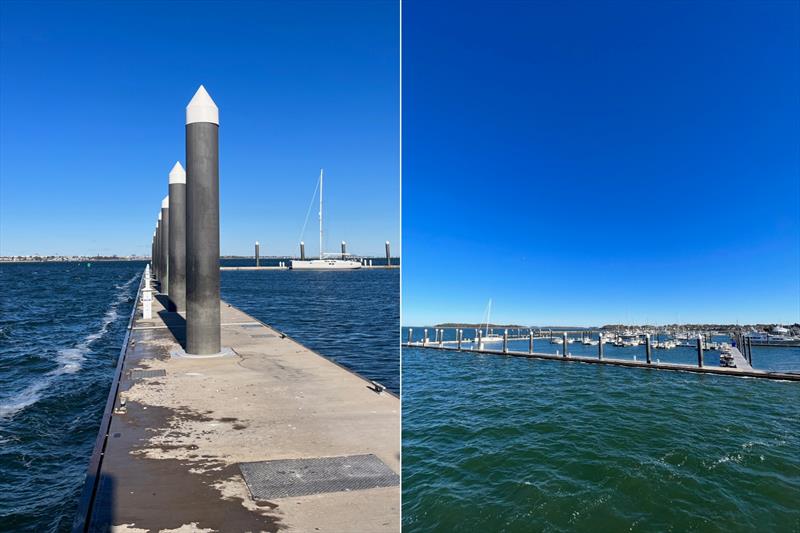

The Marina Bay project consists of an L-shaped 220m L x 4m W SF Marina breakwater on the west basin. Doubling as docking space for transient megayachts, it has electric and water supplies routed through integrated utility ducts. A second smaller section extends from the marina's rubble mound breakwater to overlap the larger portion and protect the harbor mouth. Each of the 14 pontoons is secured with a pair of 76cm steel piles.

Whether cruising the Boston skyline, fishing for flounder or exploring the many small islands in the area, both local and visiting boat owners will find Safe Harbor Marina Bay ideally situated. It can accommodate vessels with drafts up to 3.6m and up to 45m long, without beam restrictions. The marina hosts four restaurants, from casual eateries to fine dining. A short stroll along the Nantucket-style boardwalk provides access to an extensive range of shoreside amenities and community-centric activities. Visit here.

Gothenburg, Sweden-based SF Marina engineers, builds and ships floating breakwaters and concrete dock pontoons, and related marine structures. With an impressive international network of offices and manufacturing sites, it can transport its products anywhere in the world and has completed numerous recreational and commercial vessel projects around the globe.
