ClubSwan 28 - the entry to the ClubSwan racing world
by Nautor Swan 11 Feb 06:58 PST
Being the smallest model ever produced by Nautor Swan, the ClubSwan 28 represents the entry in the ClubSwan Racing world, based on the concept of simplicity, quality and, of course, pure One Design speed.
The ClubSwan 28 will be fitto join the high level One Design races all around the world. Designed by Juan K, she will sail with a crew of four. She is a pure one design, hitting the water in Summer 2024.

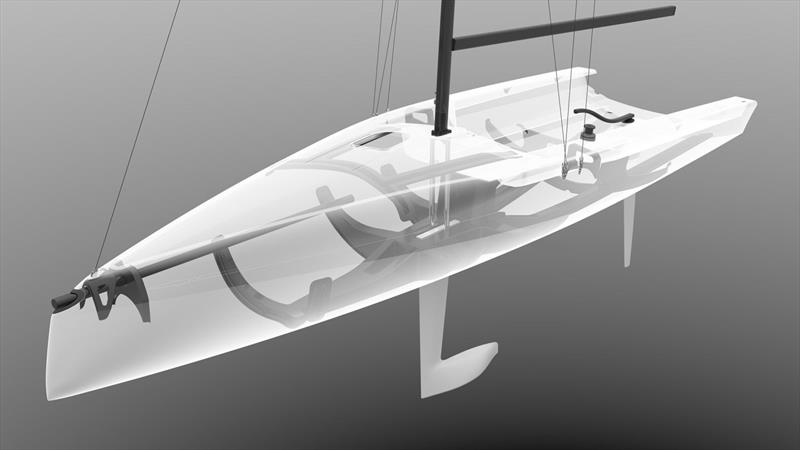

The ClubSwan 28 has been conceived to be as simple as possible, still maintaining a high level of performance in every condition. Both hull and deck will be built using specifically reinforced fiberglass, with carbon mast and no backstay.

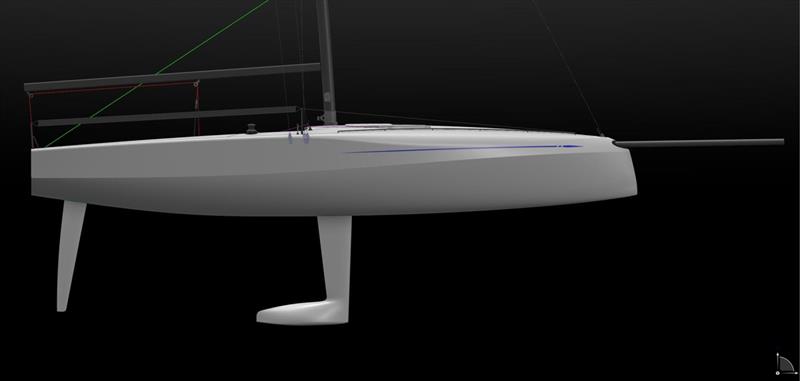

The hull has been designed to perform well in all conditions, specifically in the medium/light winds.
CS28 is an entry into the ClubSwan one design racing world as it is specifically developed for passionate sailors who enjoy close racing together with a dose of high performance in a boat that is simple to use.
Therefore, it is designed to be smart, fun and fast yet not overly technical to allow for an easier entry into the world of racing.

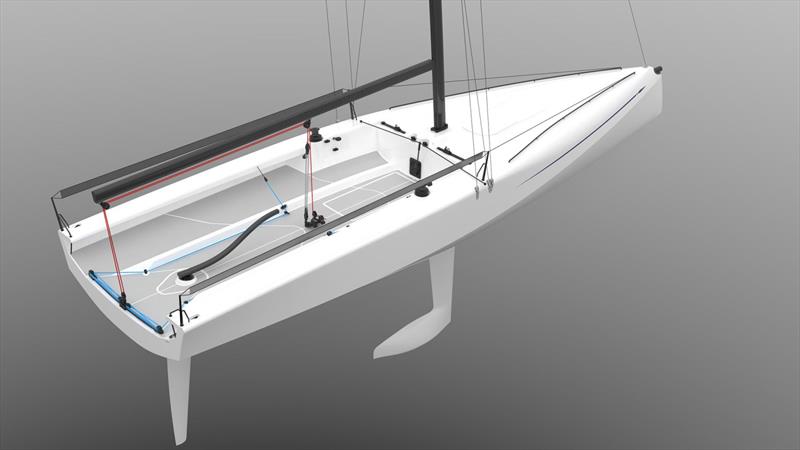

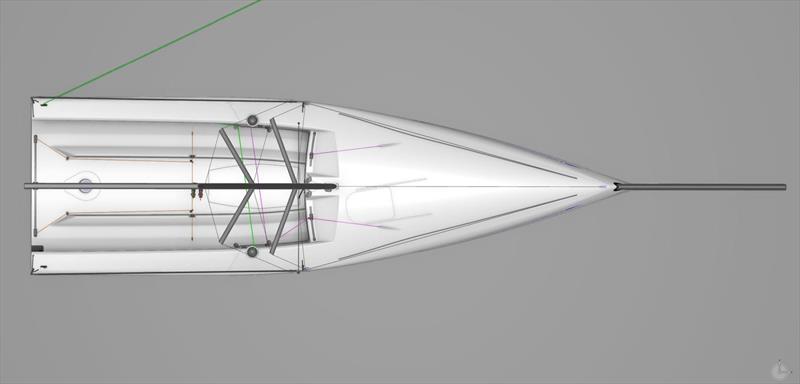

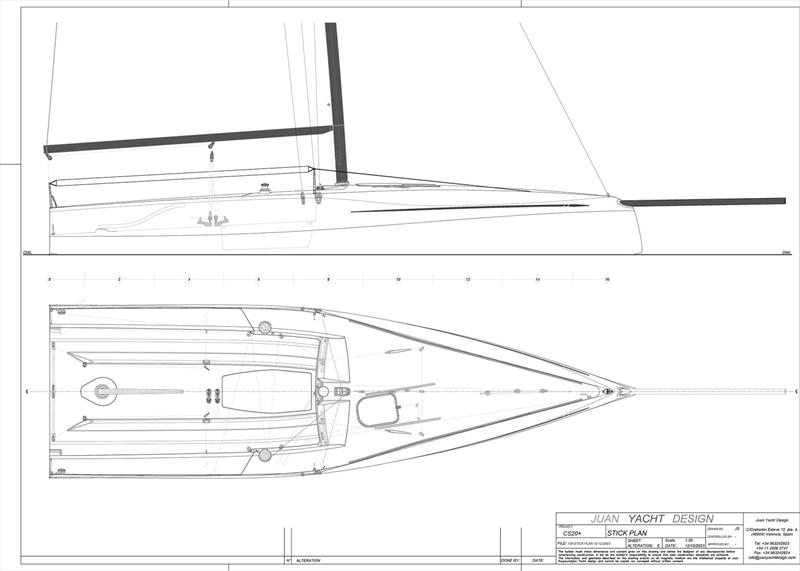

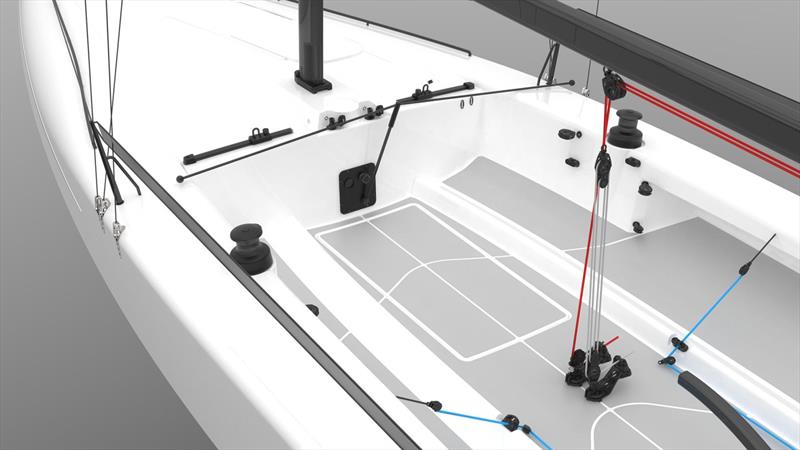

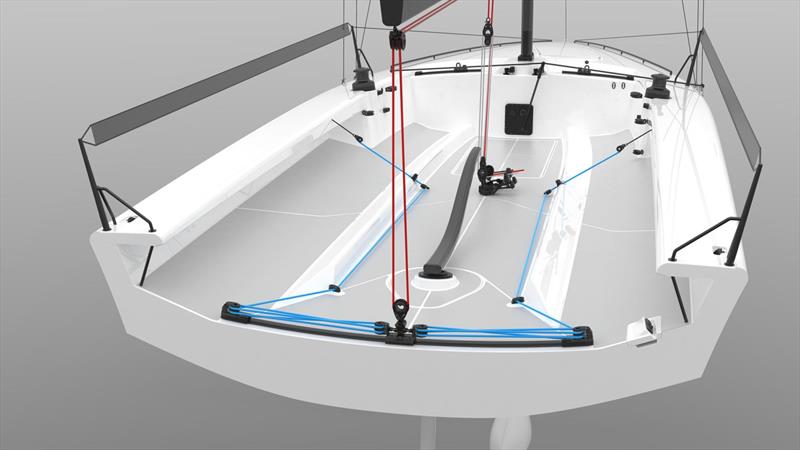

The deck layout design provides a clean and safe cockpit, allowing to race leg-in, sitting inboard, and all the ergonomic studies have been done around this feature.

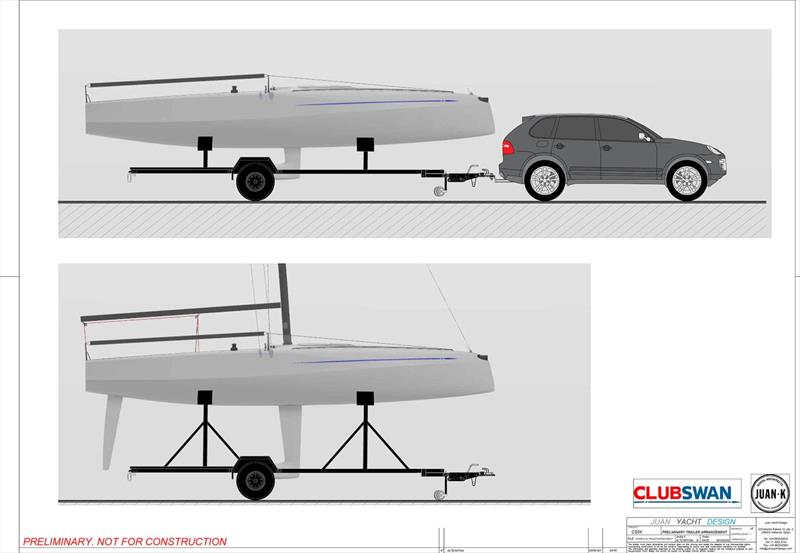

ClubSwan 28 will have a full kite retrieve system with a sliding hatch on the bow. Thanks to the lifting keel and dimensions, the boat is easily trailable, and to be rigged and unrigged in few hours only. lt is the biggest possible sailboat trailable without excessive complications nor needing a specific permit.

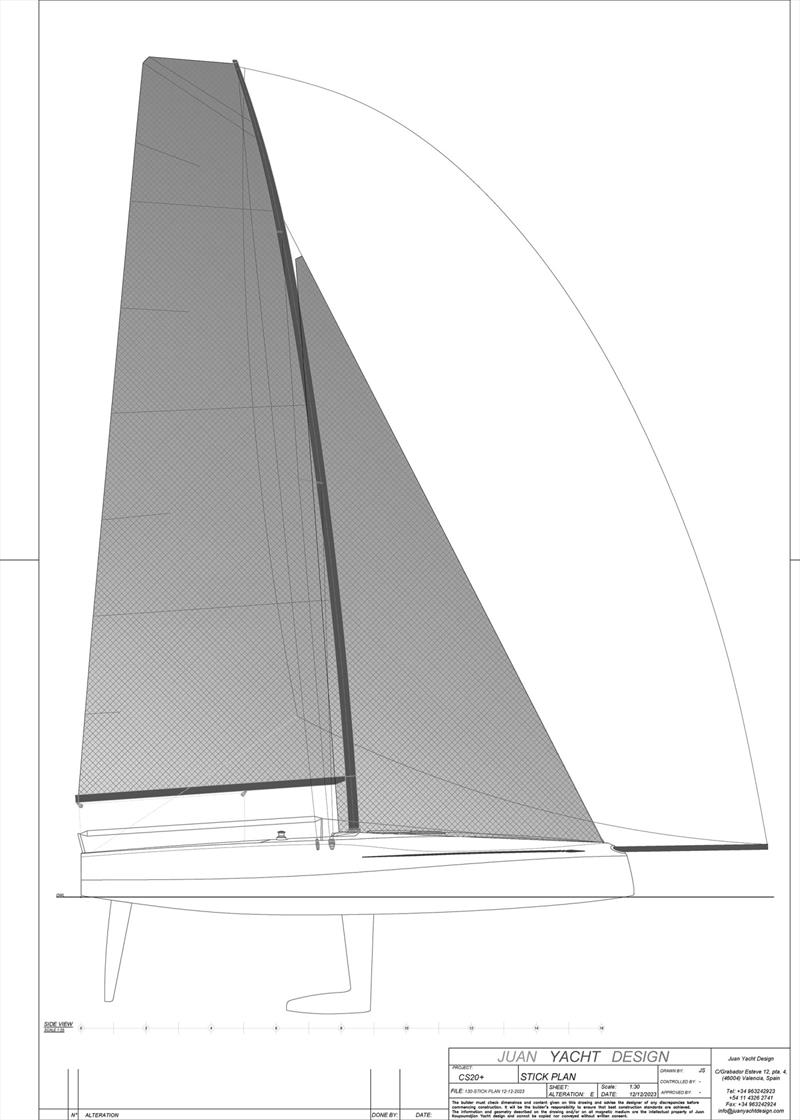

The sail pian is powerful, the sail wardrobe includes a mainsail, a jib, an AP kite and a reaching kite.
The concept of the rig is all about simplicity, based on one single movement of the rig up and down through a dedicateci and simple hydraulic system, the mast bend and headstay tension is achieved simultaneously without the need of a backstay thanks to the configuration of the shrouds.
"ClubSwan 28 is not going to be extreme but will have great performance in medium/light breeze" Federico Michetti, Head of Sports Activities and Product
Manager comments, "The brief was to have a boat not pushing to the limits of absolute performance, but it is a boat easily manageable and easy to sail."
ClubSwan 28 Specifications:
- Naval Architecture and Design: Juan Kouyoumdjian Yacht Design
- Structural Engineering: Juan Kouyoumdjian Yacht Design
- Rig Engineering: Steve Wilson
- Builder: SRG - Sinergia Racing Group
- Hull LOA (incl. bowsprit): 10.70 m / 35.10 ft
- Hull LWL: 8.50 m / 27.88 ft
- Beam Max: 2.50 m / 8.20 ft
- Draught: 1.80 m / 5.90 ft
- Displacement: 1000 kg tbc / 2204.62 lb
- Total sail area: 49.00 m2 / 527.43 sqft
- Fore triangle: 18.50 m2 / 199.13 sqft
- Main sail: 30.5 m2 / 328.29 sqft
- Spinnaker: 70 m2 / 753.47 sqft
- Hull: E-glass/epoxy infusion laminate hull and hull structure. White gelcoat finishing
- Deck: E-glass/epoxy infusion laminate deck. White gelcoat finishing. Standard antiskid deck surface.
- Keel: Steel structure and GRP
- Bowsprit: Carbon/epoxy laminate
- Rudder: Carbon/epoxy laminate
- Deck hardware: Harken
- Engine: 5 Hp
- Mast and boom: Carbon Mast, Aluminium boom
- Rigging: Rod rigging
- Transport: HC 40 container with Eu cert. trailer
