Which is the right Lewmar boat anchor for me?

Lewmar anchor © Lewmar

Lewmar has built an impressive range of anchors over the years. Their flagship anchor, the Delta, is the primary anchor used by numerous national lifeboat organisations worldwide. With such a wide range of anchors available and a choice of three materials, it can be tricky to know which anchor is best for your boat.

This article will discuss the most popular Lewmar anchors and how to choose the best anchor for your boat based on holding power and they types of sea beds you are likely to be mooring in.

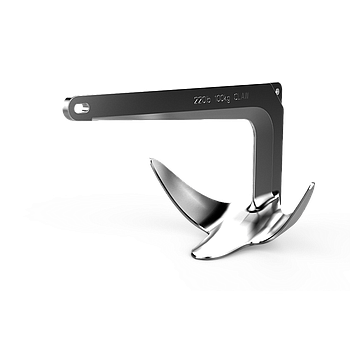

Claw anchor	One of the most popular anchor choices in North America, originally designed to secure oil rigs in the north sea. The claw anchor is an excellent all-purpose anchor which sets extremely easily in most soft surfaces and resets easily if broken loose. One downside to this anchor is that it often has less holding power than other anchors of a similar size such as the Delta, meaning you will most likely have a much larger, heavier and bulkier anchor on board, if you opt to go with the claw. Good in: mud, sand, rock, coral Not so good in: clay, heavy grass and weeds Materials: Galvanised or stainless steel Range: 1 - 80 kg

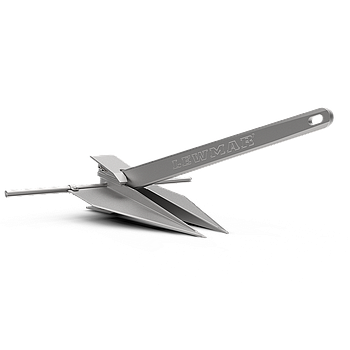

LFX anchor	A relatively modern design, the LFX anchor has an adjustable fluke angle, which can be used to adapt to different water and seabed conditions. The LFX is considered one of the best designs for mud and sand, the downside is that outside of these two elements, it is not nearly as effective. Fortunately, most sea bottoms are comprised of mud and sand. Whether or not it is used as a primary anchor, a LFX anchor makes an excellent choice as a secondary or stern anchor. When not in use, the LFX can be disassembled and stored in a bag or locker. Good in: mud, sand Not so good in: rock, coral, clay, heavy grass and weeds Materials: Aluminium Range: 2 - 10 kg
LFF anchor	The LFF is a smaller version of the LFX anchor, designed for smaller yachts. The simple, yet strong LFF anchor is ideally used as a secondary anchor as it provides great holding power, easy stowage and can be used in a number of mooring applications. Good in: mud, sand Not so good in: rock, coral, clay, heavy grass and weeds Materials: Galvanised steel Range: 6 - 25 kg
	Plow style anchors

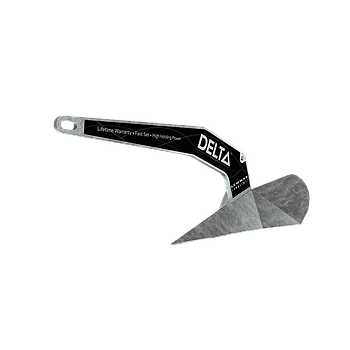

Delta® anchor	The Delta® is one of the oldest styles of anchor, dating back to the 1930s. However, it has withstood the test of time and continues to be one of the most popular anchors on the market today. The Delta® anchor uses a design similar to an agricultural plow, with a sharp point, rather than a blunt end to make insertion in to soft sea beds easy. The low centre of gravity and self-righting geometry mean that the Delta® will set immediately. Plus, it has great holding power for it's size; about 50% more than the Claw. However, the Delta's® sharp end is not as effective in sea floors with rocks that it cannot penetrate and can be damaged more easily by hard surfaces. Materials: Galvanised or stainless steel Range: 4 - 63 kg

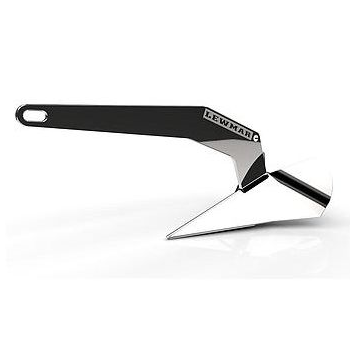

DTX anchor	The Lewmar DTX anchor fills the gap between the existing galvanised and stainless Delta® anchors, allowing owners to have a stainless steel anchor for a significantly reduced outlay. The DTX anchor is made of 316 stainless steel and incorporates a lead ballast encapsulated within the tip of the anchor to achieve the perfect centre of gravity with even greater precision. Materials: Galvanised or stainless steel Range: 6 - 63g

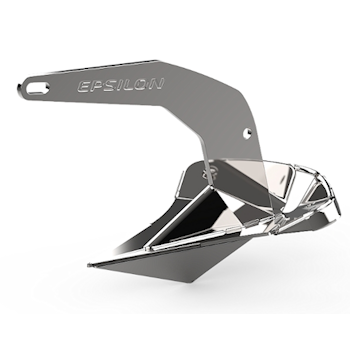

Epsilon anchor	The latest in the Lewmar anchor range and a natural progression of the Delta® anchor. This is a compact, robust version of the Delta® with extreme holding power and rapid setting for it's size. Its concave fluke and ballast keel ensure market-leading holding power and rapid setting, while maintaining self-launching characteristics with Lewmar bow rollers and retaining the same shank geometry as the original Delta®. Materials: Galvanised or stainless steel Range: 6 - 63g
CQR anchor	The CQR is very similar to the Delta® design, with the biggest difference being the hinge feature. The hinge allows this anchor to be much more responsive to changes in wind and tide when compared to other anchor types. Despite this, it has relatively low holding power compared to the fixed Delta® design. Good in: mud, sand, coral, clay, heavy grass and weeds Not so good in: rock Materials: Galvanised or stainless steel Range: 7 - 408 kg (that is a big anchor!)

Materials

The Lewmar range of anchors come in three materials, galvanised steel, stainless steel and aluminium alloy. Galvanised and stainless steel have very similar holding power and weight, the main difference being the aesthetic appearance of the stainless steel. The polished stainless steel is more prone to scratches and other aesthetic damage over time, whereas galvanised steel masks this with its uneven finish.

Aluminium is the lightest of the three and is more prone to corrosion and damage than steel (only available in the LFX model). While light weight is usually a big plus in sailing hardware, this means that aluminium anchors must rely much more on bottom penetration for holding power, and if they are not set properly, they will provide little to no holding power.

Conclusion

The anchor and material you choose depends heavily on a number of factors. For most sailors a Delta® variant or Claw is the best balance between great performance and low price point. For blue water cruisers, the CQR or LFX are much more forgiving of current and wind changes, so are a great option for more dynamic environments.

For more help in choosing the right anchor for you and your boat, contact us at or check our entire range of Lewmar Anchors.

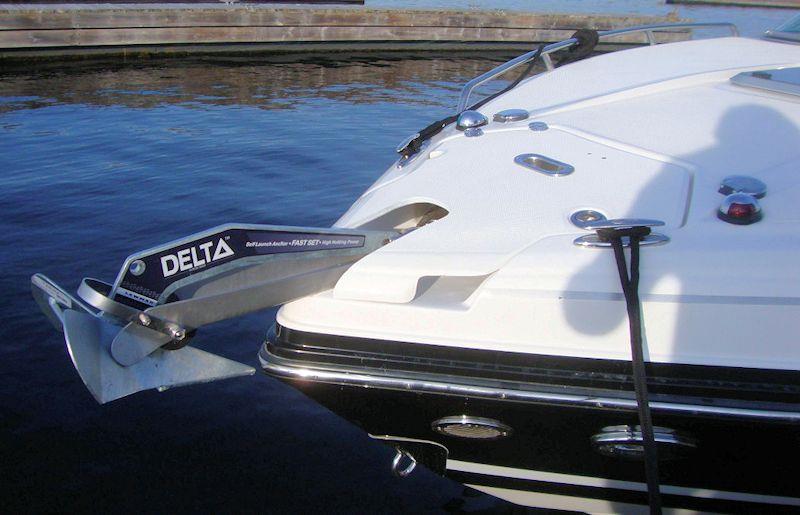

Lewmar anchors - photo © Lewmar
