All new ships should be built to a seawater-lubricated sterntubeless ship design, says Leontopolous
by Blue Ocean Alliance 12 Jun 2024 23:36 PDT
The sterntubeless ship would see savings of more than US$1 million in through-life operational costs © Blue Ocean Alliance
Future newbuild ships of all types should be built without a sterntube and with a seawater-lubricated propeller shaft bearing arrangement, according to Blue Ocean Alliance's Chris Leontopoulos.
Speaking at a recent maritime industry forum in Hamburg, Mr. Leontopoulos said the sterntubeless ship design - jointly developed by Blue Ocean Alliance members ABS, Thordon Bearings, Shanghai Merchant Ship Design and Research Institute (SDARI), Wärtsilä, and the National Technical University of Athens (NTUA) - is so commercially, operationally and environmentally attractive that "I personally hope that in the future all ships are built like this".
Kick-starting his presentation with the startling statistic that more than eight million litres of sterntube lubricating oil is polluting the oceans annually, Mr. Leontopoulos, ABS' Vice President, Technology, EMEA, said the design interventions proposed by the group can deliver a commercially and environmentally optimal vessel capable of saving hundreds of thousands of dollars in operational costs. This, without changing hull lines or existing class rules and regulations.
"We decided to remove the sterntube, and by shortening propeller shaft length and moving the prime mover further aft, we no longer needed a forward sterntube bearing. This places less friction on the shaft, resulting in lower power loss, improved fuel efficiency and reduced emissions. A sterntubeless ship also results in a bigger cargo space for the same vessel length," he said.
Mr. Leontopoulos went on to say that the use of a seawater-lubricated bearing with a tapered key design - the principal component that makes the sterntubeless ship possible - also removes the need for an aft seal and a shaft coating system. The sterntubeless design features a seawater-lubricated bearing, a Wärtsilä forward shaft seal, a Water Quality Package and a bulkhead seal.

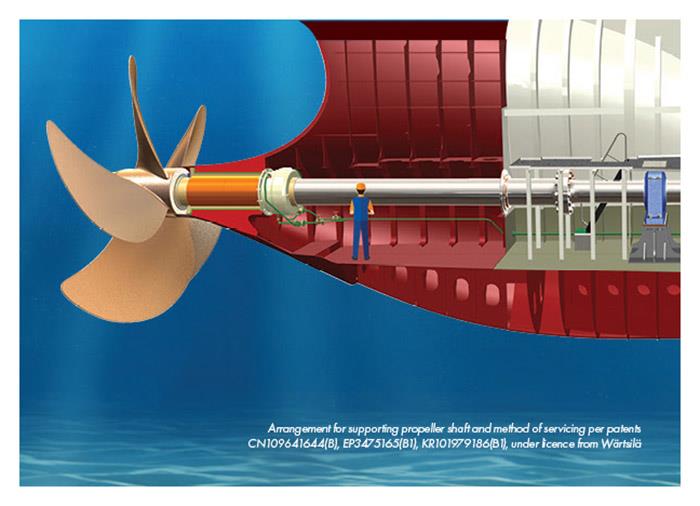

The technical differences were immediately obvious when a graphic was shown comparing a ship with and without a sterntube.
Essentially, the design presents a dry internal inspection chamber aft of the engine room, in the space normally given to the sterntube. This new space, big enough for engineers to stand up in to maintain or replace propeller shaft components while the ship is afloat, has been created by trimming stiffeners and cutting an opening into the bulkhead.
"This is a very a big advantage because you don't have to drydock the ship and withdraw the shaft or propeller to monitor and maintain seawater-lubricated bearings and seals. We can now do this from inside the ship while the vessel is operational," said Mr. Leontopoulos.
The sterntubeless ship, he said, also negates the need to realign the shaft throughout the vessel's lifetime, mitigating the risk of shaft damage or indentation, which can result in substantial downtime and expenditure.
Going on to reveal the cost benefits of a sterntubeless ship, Mr. Leontopoulos acknowledged that although the estimated CAPEX for additional components could add about US$10,000 to $30,000 to the cost of a newbuild depending on shaft diameter, the ROI is quick given the reduced operational expenditure. This is where the real financial gain is to be made.
He told conference delegates that aside from immediate savings of US$350,000 in lubricating oil, operators could save more than US$1 million in through-life operational costs.
This is based on reduced fuel consumption, reduced drydocking and maintenance costs, and associated loss of earnings; shaft alignment optimization, lower bearing wear rates, better EEDI; and an increase in cargo carrying capacity. The arrangement also reduces to zero the risk of environmental fines related to sterntube oil pollution.
Summing up he said: "There's no pollution risk, no oil changes, and no need to drydock to change the bearing. A shorter shaft line and smaller engine room space increases cargo space and improves EEDI ratings; there is no barred speed range and no fatigue concerns. It complies completely with all existing class rules."
On that latter point, ABS has now published a Requirements for Sterntubeless Vessels with Water-Lubricated Bearings guide, bringing together in one document all existing applicable rules for the design. ABS is also introducing a new notation for the sterntubeless ship design, for which the classification society awarded an AiP in June 2022.
Neil McDonald, Thordon Bearings' Regional Manager - Northern Europe & Africa, said: "The sterntubeless ship design proposed by the Blue Ocean Alliance is truly a milestone development for the global shipping industry. This part of the ship hasn't changed since the advent of steam propulsion.
"Simply by remodeling the sterntube space and replacing an oil-lubricated bearing system with one lubricated by water, newbuild ships can be substantially more environmentally and operationally sustainable, without the need for new class rules and notations. It is significant design intervention."
Chris Leontopoulos believes the first sterntubeless ship with a Thordon seawater-lubricated propeller shaft bearing system, probably based on a SDARI design, will be ordered within the next twelve months.
The ABS guidelines for a sterntubeless ship can be downloaded free [PDF].
